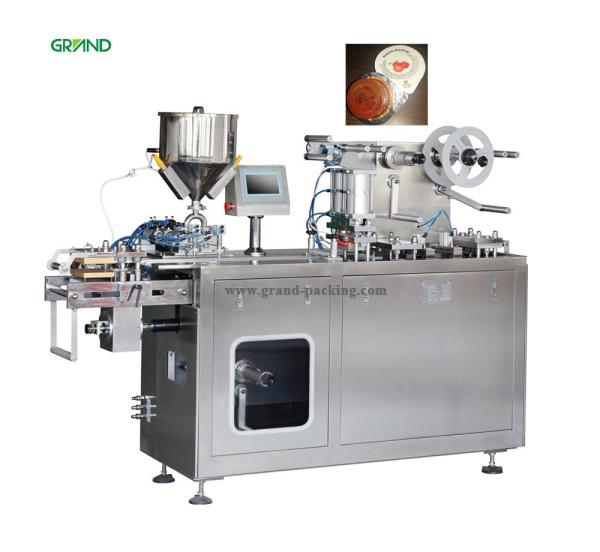

Liquid Filling Blister Pack Sealing Machine 10-35 Times/Min Weight 820 Kg

Name: Liquid Filling Blister Pack Sealing Machine 1035 TimesMin Weight 820 Kg
Brand: Grand Packing
Price: 1 USD

Liquid Filling Blister Pack Sealing Machine 10-35 Times/Min Weight 820 Kg Manufactures

Brand Name : Grand Packing

Model Number : DPP-150

Certification : CE

Place of Origin : Zhejiang, China

MOQ : 1set

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 35 sets per month

Delivery Time : 20-35 working days upon receipt of payment

Packaging Details : Blister packing machine will be packed in standard exporting woodcase

Product name : DPP 150 Automatic liquid filling blister packing machine manufacturer

Max. Forming Area : 130*100 mm

Cutting Frequency : 10-35 times/min

Stroke Range : 50~120 mm

Plate Size : 80*57 mm

Packaging Material : Alu,PVC/PET

Weight : 820 kg

Overall Dimension : 2500*800*1780 (mm)(L*W*H)

Contact Now

DPP 150 Automatic liquid filling blister packing machine manufacturer

Features

1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2. Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement. It adopts imported frequency inverter.
3. It adopts photoelectrical controlling system to make PS, PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
4. It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
5. The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.

Main Technical Parameters

Model	DPP-150
Punch frequency	10-35times/min
Production capacity	1200-4200 plates/hour
Max. Forming area & Depth	130x100, Max. Depth 26mm( customizee)
Standard Stroke range	50-120mm(can be designed as per user’s required)
Standard plate size	80x57mm (can be designed as per user’s required)
Air pressure	0.4-0.6 Mpa
Compressed air required	Air compressor≥0.3m3/min
Total power supply	380V/220V 50Hz 2.8Kw
Main motor	1.5 Kw
PVC hard Film	0.15-0.5*150 (mm)
PTP Aluminum film	0.02-0.035*150 (mm)
Dialysis Paper	0.02-0.035*150(mm)
Mould cooling	Tap water or Recycling water
Overall Dimension	2500x8000x1780 (mm)(LxWxH)
Weight	Net 820 kg Gross weight: 890kg
Noise index	<75dBA
